ProChip System

The ProChip Timing System by MYLAPS Sports Technology is the fastest, most reliable and easy to use system on the market. The system can be used at a wide range of active sports, including cycling, triathlon, skating, swimming, biathlon and more.

Sports:    High speed accuracy  ✔  2 – 5000 participants

The ProChip Timing System is fast, reliable, accurate and easy to use. The system can be used at a wide range of active sports, including cycling, triathlon, skating, swimming, biathlon and more. Our ProChip Timing System is suitable for professional events as it has the highest accuracy rates in the industry, helping to determine even the closest of finishes.

New call-to-action

Governance

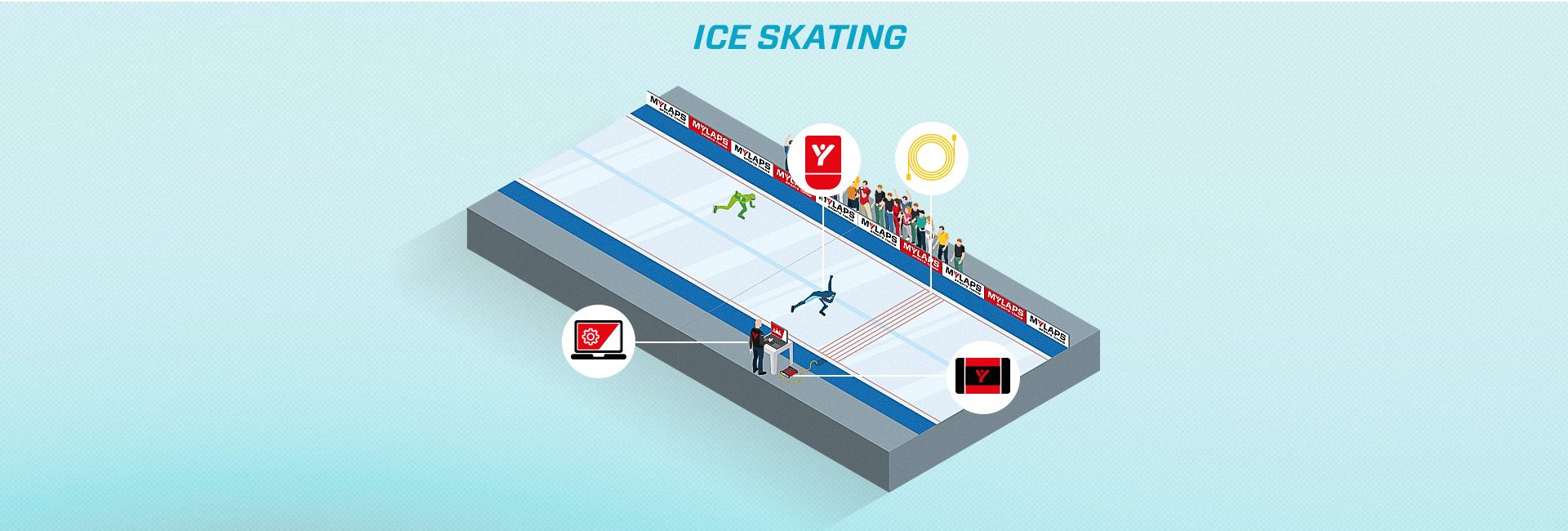

Timing Setup

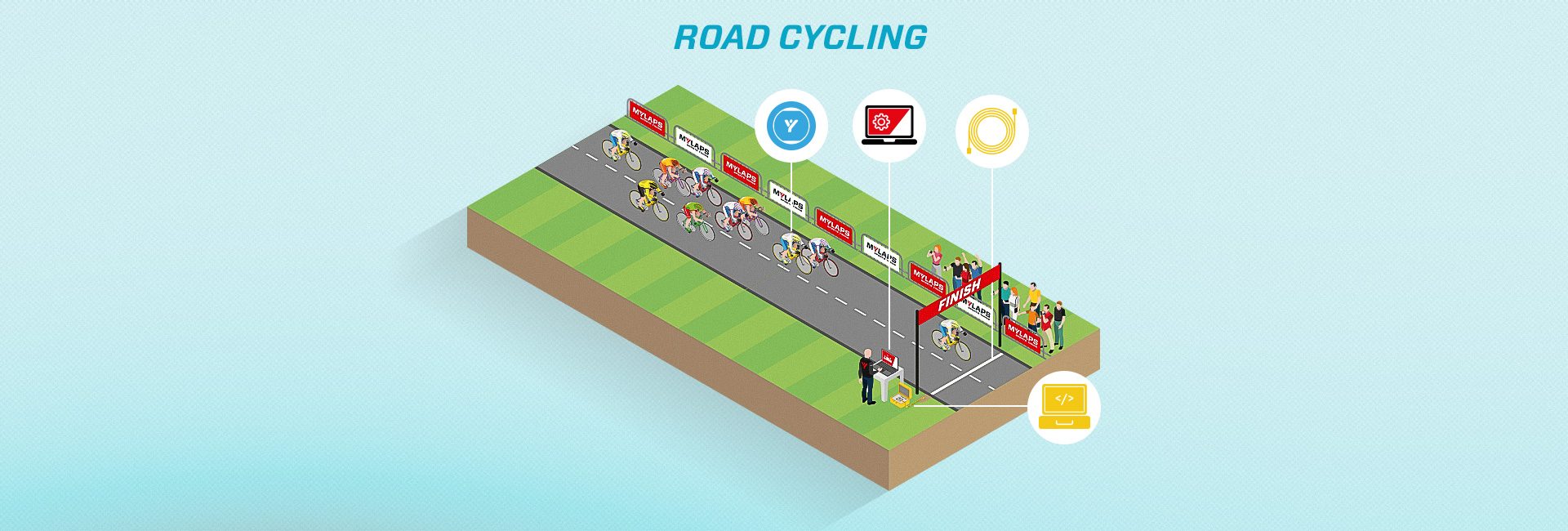

Timing a race, whether it’s a small race on the local track or a professional event, it is always a challenging task. You want the best equipment with the highest read-rates and accuracy. The MYLAPS ProChip Timing System is the best in the market for the job, check-out the setup and add services to give your participants the best experience possible.

The MYLAPS ProChip decoder is the beating heart of the system. It receives passing times from the detection loop and translates this into data the software can work with.

The detection loop is connected to the decoder. This decodes the received signals into the athletes ID and records (lap) times to the millisecond. The maximum distance between the detection loop and the decoder is 100 meter (330ft) which can be covered by a high quality coax cable. The ProChip decoders are available in 2 versions; The standard ProChip decoder (RED) and the Portable ProChip decoder (Yellow). The Prochip decoder sends this data to the timekeeper’s computer.

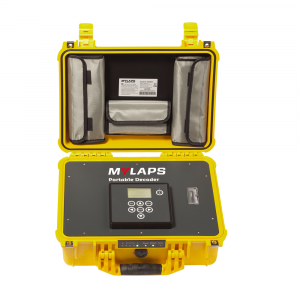

Portable ProChip decoders are housed in a sturdy Pelican Case. This makes them easy to carry to any event, and fully weatherproof. The decoder weighs around 10kg and when fully charged it will function for over 15 hours: long enough to deal with triathlons.



++ ProChip (Act) 43

The ProChip Smart Decoder is the new standard in portable timing decoders. The decoder is 2.5x smaller, 6x lighter and 3x more affordable than the previous ProChip Portable Decoder, while maintaining all of the functionality and even adding features.

Because of it’s small size the ProChip Smart Decoder fits in your carry-on luggage, so it makes your logistics a lot easier. To time a race all you need is the ProChip Smart Decoder, a loop, ProChips and a laptop with Timing & Scoring and you are good to go!

Read more
ProChip Smart Decoder 10

Attached to the detection loop, it decodes the transponder signal into the runner’s ID at the exact time at which the runner crossed the time line. The table-top decoder needs to be attached to an external power source. The decoder has a built-in practice mode that allows automated uploads of practice results to the internet, without the need of a timekeeper.

Features

  • Easy system set-up with simple wire antennas
  • Easy to handle, easy to carry
  • Intuitive operation
  • Highly accurate GPS synchronization
  • Connectivity through Ethernet
++ ProChip (Act) 42

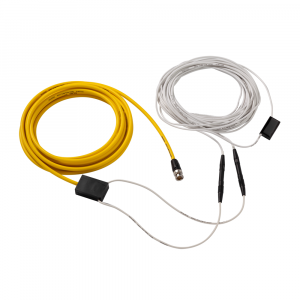

Detection loops are installed in the track at the start and finish line and intermediate time points. The loops work as the system´s antennas and pick up the ProChips signals.

The detection loop can be installed in basically every type of surface.

  • Asphalt or concrete (not permanent): use industrial quality adhesive tape to affix the loop to the course. Make sure you use high quality tape to secure the tape to the road.
  • Ice: Cut slots of approximately 2 cm (1inch) deep in the ice, embed the loop wires and fill with water. Make sure to do this well in advance of an event, as the water will need some time to freeze.
  • Snow: cut slots in the snow, approximately 20 cm (8 inch) deep. Place the loop wires in the slot and fill them with snow.
++ ProChip (Act) 37

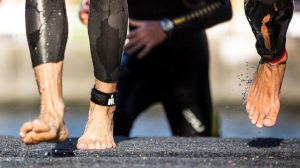

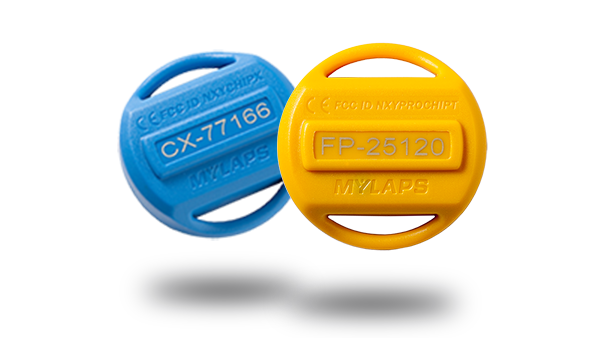

ProChips can be used at many different types of sports. They come with ankle strap for use at triathlons, swimming and more.

The ultimate system for high-speed elite sports

All athletes have a ProChip FLEX attached to their ankle/wrist strap or bike in order to identify each participant and to record the exact time at which they pass the start, finish and intermediate time lines. Each ProChip sends out a unique signal to the ProChip timing system that is embedded in the track.

The ProChip FLEX: used for many different sports

The ProChip Flex can be used for many different types of sports. They come with ankle strap for use at triathlons, swimming and more. When used at cycling events it is recommended to mount the ProChip FLEX on the bicycle’s front fork, as close as possible to the front axle, by using cable ties.

Features

Every MYLAPS ProChip FLEX comes with a subscription for 1, 2 or 5 years. After the initial subscription period, the subscription can be renewed.

  • Timing Resolution: 0.003 sec
  • Density: 4800 chips/minute
  • Housing: Water- and shockproof
  • Numbers available: unlimited

MYLAPS ProChips are highly durable and can even be washed in your washing machine!

Buy your personal ProChip
++ ProChip (Act) 40

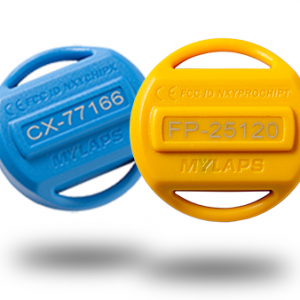

The ProChip Timer is the newest addition to the ProChip System. Together with the ProChip Communicator it is the fastest manageable timing chip in bulk. Try it now.

Manage and activate your ProChips in bulk

ProChip Timer is a timing solution for timers that have to manage a large number of chips at once. The bulk-activation functionality of the ProChip in combination with the ProChip Communicator makes the process of checking and activating ProChips smooth and effortless. You always know what ProChips are ready for the next event and which ones you need to update.

ProChip Timer 4

The ProChip is the proven reliable chip with an upgraded processor. It has best in class read-rates, high speed accuracy and is used at all A level events in the world. Each chip is unique which guarantees athlete identification up to 0.003 seconds.

To use the chip in races you need an active 1, 2 or 5 year subscription that you can activate with the ProChip Communicator in MYLAPS Connect.

The ProChip comes with a practice option for facilities where a ProChip System is installed. In practice mode it is possible to effortlessly use the system with automated online training data.

Why ProChip Timer?

The ProChip Timer is designed to make it easier to manage and update your ProChips in one overview.

Pros of the ProChip Timer:

  • Easy bulk activation & mass subscription renewal
  • Best in class read-rates and high speed accuracy up to 0.003 seconds
  • Wireless management of your battery-powered ProChips
  • Clear overview of ProChips owned, status and subscription wallet via portal.mylaps.com
  • Compatible with the proven ProChip System



More information
ProChip System 5

MYLAPS Orbits 4 Software is a complete and extremely user-friendly software package that allows you to prepare entry lists, set up races and process, print, publish and upload results to mylaps.com.

The software for high-speed active sports

Orbits 4 Software is used for high-speed active sports, such as ice skating and inline skating. It is a complete and user-friendly software package.It includes easy to use wizards which can assist with quicker start-up and customizing to your preferences.

It takes care of:

  • Event Setup
  • Registration
  • Event timing
  • Results processing
  • Results distribution
  • Championship management
Update available of Orbits Cycling 3

The platform for active sports results

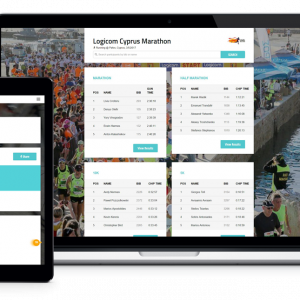

MYLAPS Sporthive is the practice and event results platform for running, cycling, triathlon, skating, mud and fun runs and all other forms of active sports. Results from ProChip-timed events will be uploaded to MYLAPS Sporthive instead of mylaps.com and other event results will also be integrated on the new platform.

Visit Sporthive
MYLAPS Sporthive
  • Basic system component
  • Full experience
  • Optional component

New call-to-action

ProChip Smart Decoder

ProChip Smart Decoder 43

World's smallest, lightest and most affordable decoder

Meet the latest revolution in timing! With the ProChip Smart Decoder we introduce a timing system that gives you the high timing quality and accuracy that you are used to, in the smallest, most lightweight and affordable device you have ever seen.

The ProChip Smart Decoder will change timing for the better. The possibility to connect a modem and powerbank will give you great flexibility without having to worry about missing any passings. This timing device makes timing accessible for anyone that cares about accurate racing results.

Learn all about the ProChip Smart Decoder

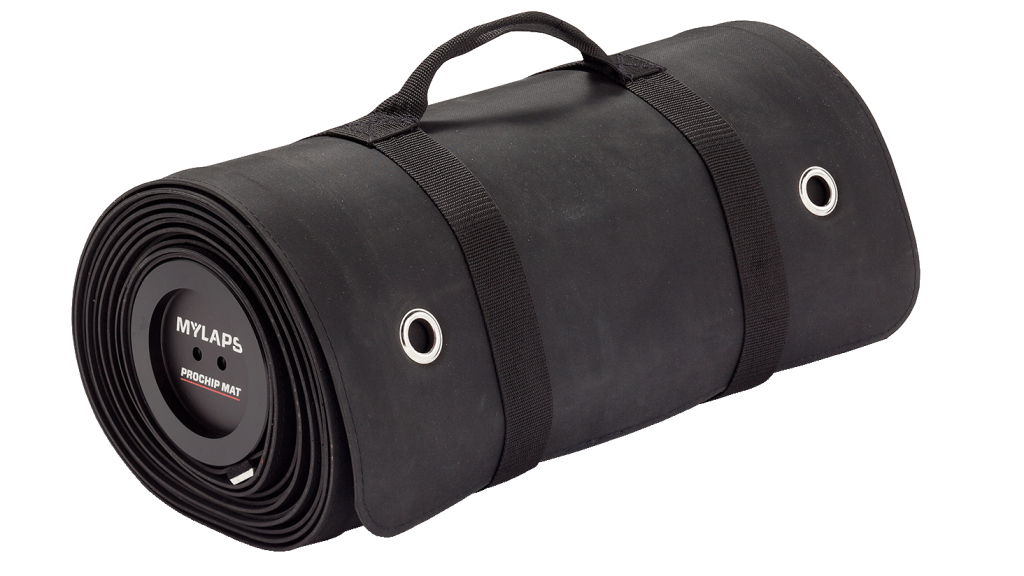

New: ProChip Mat

Setup your ProChip timeline in 1 minute

The ProChip Mat is an innovation that helps set up your timelines faster than you could ever imagine. The rollable formula enables you to deploy the timing mat with one movement. The loop is integrated within the mat, so there’s no more manual loop handling needed. The short setup time (within 1 minute) means minimal road closure time before and after the race.

Learn all about the ProChip Mat



ProChip Mat 1

Transponders

For different sports we have different solutions. Choose the chip that suits your event best, based on the sport, the size of the event and the setting in which the event is held.

++ ProChip (Act) 40

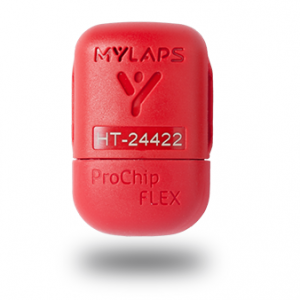

ProChip FLEX

All athletes have a ProChip FLEX attached to their ankle/wrist strap or bike in order to identify each participant and to record the exact time at which they pass the start, finish and intermediate time lines. Each ProChip sends out a unique signal to the ProChip system that is embedded in the track.

ProChip System 7

ProChip Timer (Go)

ProChip Timer is a timing solution for timers that have to manage a large number of chips at once. The bulk-activation functionality of the ProChip in combination with the ProChip Communicator makes the process of checking and activating ProChips smooth and effortless.

Environmental Impact



At MYLAPS, we prioritize minimizing our environmental impact through constant innovation. Since 2022, MYLAPS has become a carbon neutral company. Our product development focuses on durability, enabling our products to be used for extended periods in any weather.

The ProChips are reusable and resilient, allowing event organizers to reduce waste by using owned chips or encouraging athletes to bring their own. The ProChip Smart Decoder is smaller, more energy-efficient, and uses lead-free batteries.



Our Responsibility

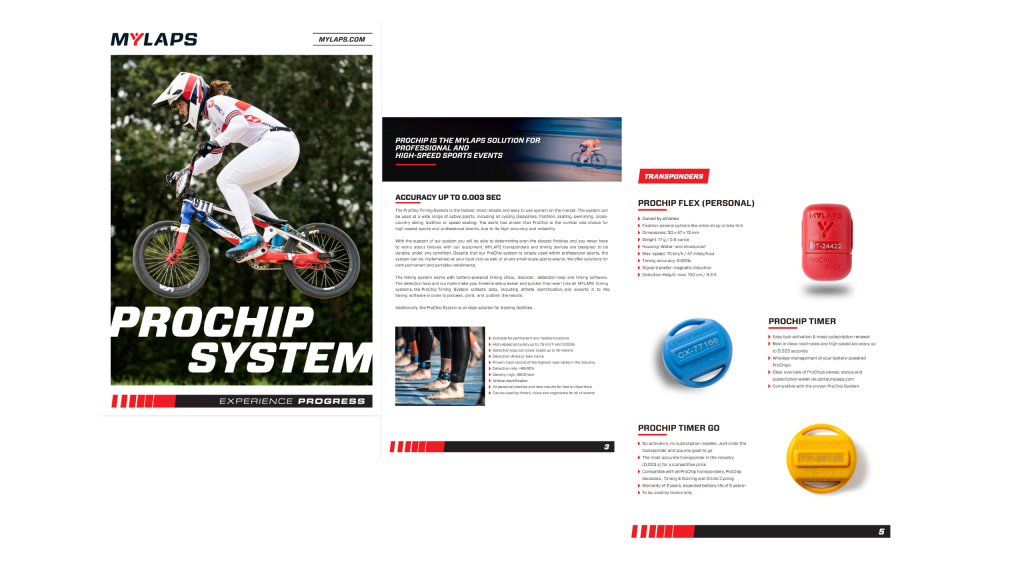

Brochure

Download your free Brochure

Learn everything about the MYLAPS ProChip System in this online brochure. Download your free copy today and find information about:
✔  System components & add-ons
✔  Product specifications
✔ System combinations

Sports

ProChip Timing System for MTB races.

MTB

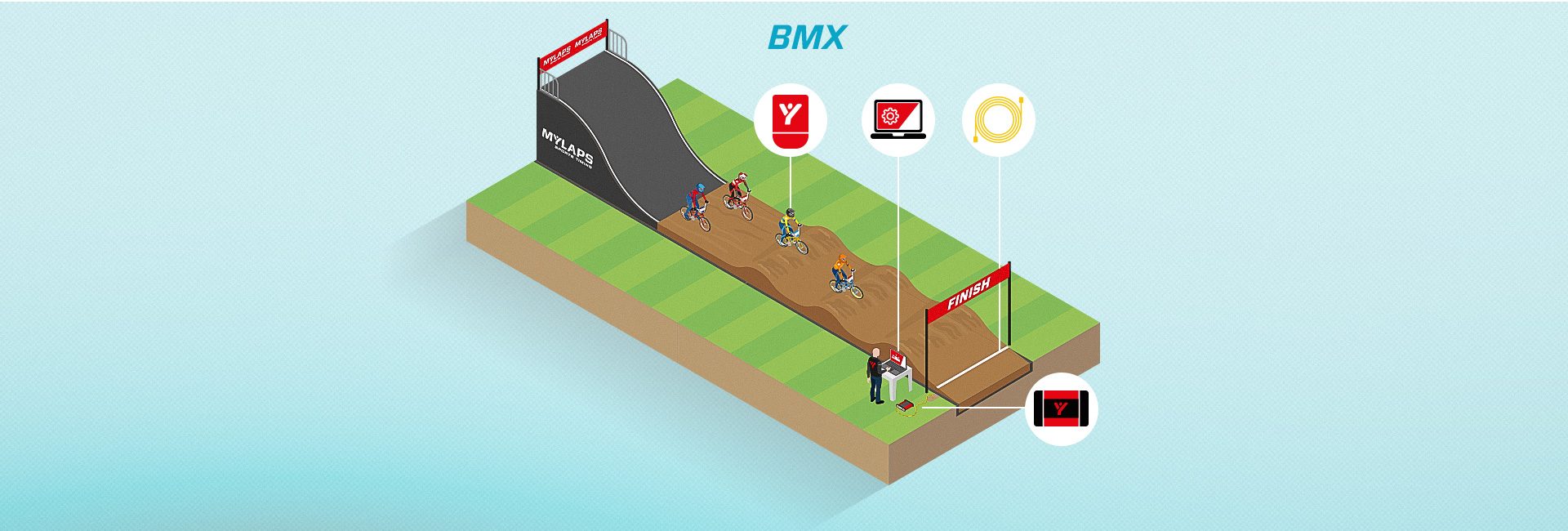

ProChip Timing System for BMX races.

BMX

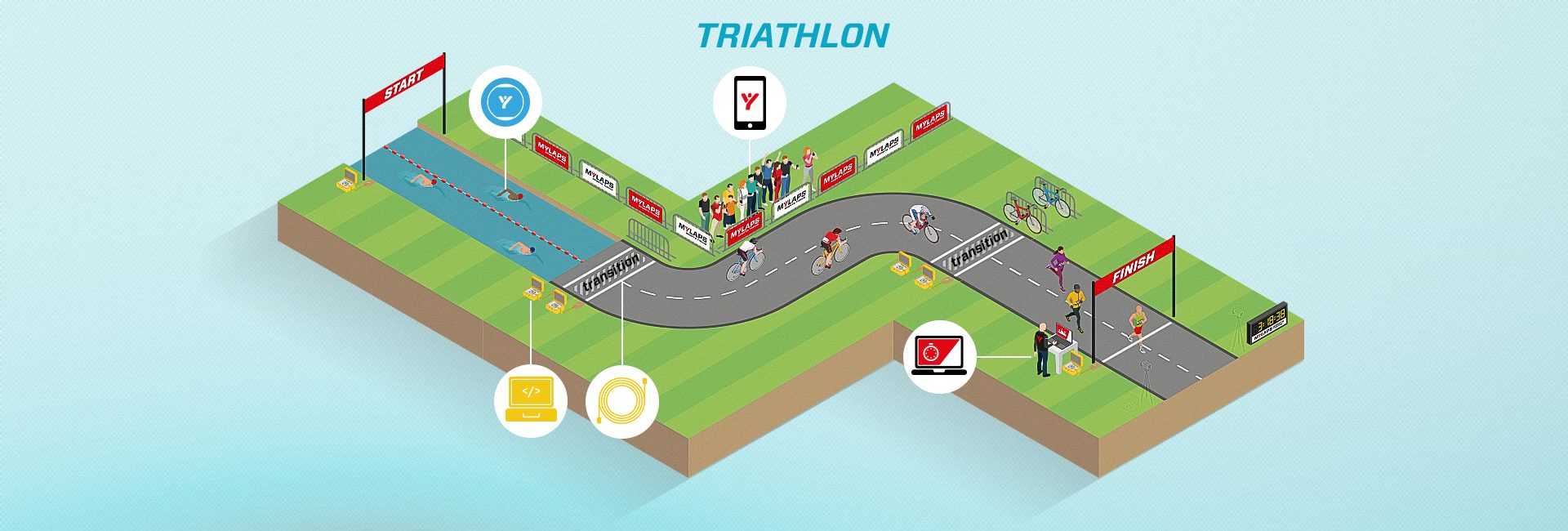

ProChip Timing System for Triathlon and MultiSport events.

Triathlon

Services

Live Timing

  1. When to use

  2. Live Tracking
  3. Sports:
  4. Broadcast to followers
MYLAPS Sporthive

Optimize your race experience with real-time results! Get the most out of your race event by broadcasting live race results to your fans and followers. With the new Speedhive Live Timing Web you’re fully equipped for your upcoming races.

Read more.

Customer stories

++ ProChip (Act) 3

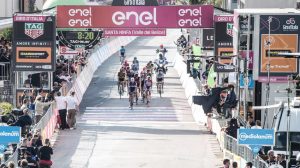

Giro d'Italia

The Giro d'Italia is the first big tour of the cycling season. With the challenging and divers parcours it's always an exciting race to watch. For timing they relay on ProChip.

ProChip for cycling
++ ProChip (Act) 4

IRONMAN Maastricht

The most iconic sports there is, is triathlon, with 3 different disciplines you have to perform your best in all sports. That's why we are so proud to have the IRONMAN timed with ProChip.

ProChip for Triathlon

Contact us about ProChip



Don’t hesitate to contact us if you want a personal consultation about the best timing system for your situation.
