ProChip Timer (Go)

The ProChip Timer (Go) is the latest transponder addition to the ProChip Timing System. With these ProChips, we improve the ease of use while maintaining the high performance standard you're used to. Try it now.

ProChip Timer 13

The most reliable timer transponder for active sports

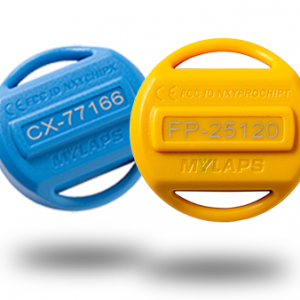

ProChip Timer is a timing solution for timers that have to manage a large number of chips at once. Wheter you want subscription based ProChips (blue ProChip) or out-of-the-box ProChips (yellow ProChip), the ProChip is the proven reliable chip with an upgraded processor. It has best in class read-rates, high speed accuracy and is used at all A level events in the world. Each chip is unique which guarantees athlete identification up to 0.003 seconds.

The ProChip comes with a practice option for facilities where a ProChip System is installed. In practice mode it is possible to effortlessly use the system with automated online training data.

Get in touch about ProChip Timer

ProChip Timer & ProChip Timer Go

ProChip Timer 9

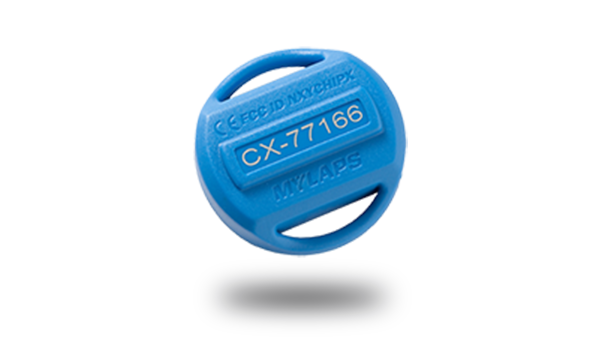

ProChip Timer

ProChip Timer is a solution for timers that want the flexibility of subscription chips with a large number of chips in stock. The bulk-activation functionality in combination with the ProChip Communicator makes the process of checking and activating ProChips smooth and effortless.

ProChip Timer 11

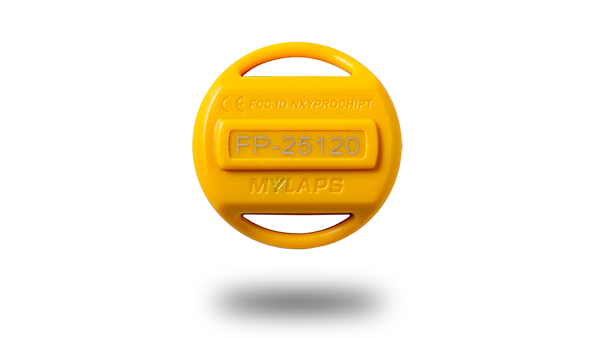

ProChip Timer Go

With the ProChip Timer Go you have the same performance as the ProChip timer, but without the handling and administration that comes with your stock of transponders. The ProChip Timer Go is ready to go from the box and the investment is only done ones with a life expectancy of 5+ years.

Manage and activate your ProChips in bulk

The ProChip Timer is designed to make it easier to manage and update your ProChips in one overview.

Pros of the ProChip Timer:

  • Easy bulk activation & mass subscription renewal
  • Best in class read-rates and high speed accuracy up to 0.003 seconds
  • Wireless management of your battery-powered ProChips
  • Clear overview of ProChips owned, status and subscription wallet via portal.mylaps.com
  • Compatible with the proven ProChip System

Shop now

The out-of-the-box ProChip

The ProChip Timer Go is developed as the out-of-the-box transponder solution for timers.

Pros of the ProChip Timer Go:

  • No activation, no subscription needed. Just order the transponder and you are good to go
  • The most accurate transponder in the industry (0,003 s) for a competitive price
  • Compatible with all ProChip transponders, ProChip decoders, Timing & Scoring and Orbits Cycling
  • Warranty of 2 years, expected battery life of 5 years+
  • To be used by timers only

Shop now

Ice Skating 2

Timing Setup

The MYLAPS ProChip decoder is the beating heart of the system. It receives passing times from the detection loop and translates this into data the software can work with.

The detection loop is connected to the decoder. This decodes the received signals into the athletes ID and records (lap) times to the millisecond. The maximum distance between the detection loop and the decoder is 100 meter (330ft) which can be covered by a high quality coax cable. The Prochip decoders are available in 2 versions; The standard Prochip decoder (RED) and the Portable Prochip decoder (Yellow)

The Prochip decoder sends this data to the timekeeper’s computer. The decoder has a built-in practice mode that allows automated uploads of practice results to the internet, without the need of a timekeeper.

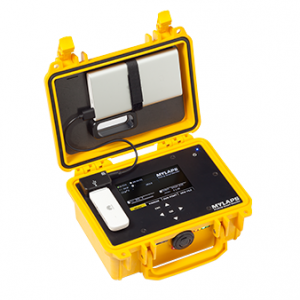

Portable ProChip decoders are housed in a sturdy Pelican Case. This makes them easy to carry to any event, and fully weatherproof. The decoder weighs around 10kg and when fully charged it will function for over 15 hours: long enough to deal with triathlons.

++ ProChip (Act) 43

Attached to the detection loop, it decodes the transponder signal into the runner’s ID at the exact time at which the runner crossed the time line. The table-top decoder needs to be attached to an external power source.

++ ProChip (Act) 42

Detection loops are installed in the track at the start and finish line and intermediate time points. The loops work as the system´s antennas and pick up the ProChips signals.

The detection loop can be installed in basically every type of surface.

Asphalt or concrete (not permanent): use industrial quality adhesive tape to affix the loop to the course. Make sure you use high quality tape to secure the tape to the road.
Ice: Cut slots of approximately 2 cm (1inch) deep in the ice, embed the loop wires and fill with water. Make sure to do this well in advance of an event, as the water will need some time to freeze.
Snow: cut slots in the snow, approximately 20 cm (8 inch) deep. Place the loop wires in the slot and fill them with snow.

++ ProChip (Act) 37

The ProChip Timer is the newest addition to the ProChip System. Together with the ProChip Communicator it is the fastest manageable timing chip in bulk. Try it now.

Manage and activate your ProChips in bulk

ProChip Timer is a timing solution for timers that have to manage a large number of chips at once. The bulk-activation functionality of the ProChip in combination with the ProChip Communicator makes the process of checking and activating ProChips smooth and effortless. You always know what ProChips are ready for the next event and which ones you need to update.

The ProChip is the proven reliable chip with an upgraded processor. It has best in class read-rates, high speed accuracy and is used at all A level events in the world. Each chip is unique which guarantees athlete identification up to 0.003 seconds.

To use the chip in races you need an active 1, 2 or 5 year subscription that you can activate with the ProChip Communicator in MYLAPS Connect.

The ProChip comes with a practice option for facilities where a ProChip System is installed. In practice mode it is possible to effortlessly use the system with automated online training data.

Why ProChip Timer?

The ProChip Timer is designed to make it easier to manage and update your ProChips in one overview.

Pros of the ProChip Timer:

Easy bulk activation & mass subscription renewal
Best in class read-rates and high speed accuracy up to 0.003 seconds
Wireless management of your battery-powered ProChips
Clear overview of ProChips owned, status and subscription wallet via portal.mylaps.com
Compatible with the proven ProChip System

ProChip Timer 10

MYLAPS Orbits 4 Software is a complete and extremely user-friendly software package that allows you to prepare entry lists, set up races and process, print, publish and upload results to mylaps.com.

The software for high-speed active sports

Orbits 4 Software is used for high-speed active sports, such as ice skating and inline skating. It is a complete and user-friendly software package.It includes easy to use wizards which can assist with quicker start-up and customizing to your preferences.

It takes care of:

Event Setup
Registration
Event timing
Results processing
Results distribution
Championship management

The MYLAPS camera ensures you will have high quality photos and videos under all circumstances. Powered over Ethernet and directly connected to the PhotoVideo Integrator it is the perfect match up. Designed for all weather conditions and sports the MYLAPS camera delivers:

8 MP resolution photos
Full HD video recording

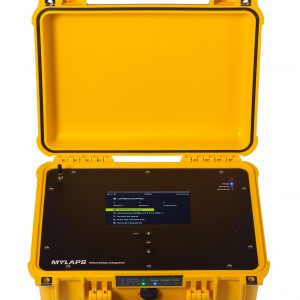

The MYLAPS PhotoVideo Integrator is the beating heart of our game changing innovation. Fully integrated with existing MYLAPS timing hardware the PhotoVideo Integrator ensures:

Reliable and accurate photos and videos
Easy and fast setup
Super fast and smart data handling

++ PhotoVideo (Act) 2

The platform for active sports results

MYLAPS Sporthive is the practice and event results platform for running, cycling, triathlon, skating, mud and fun runs and all other forms of active sports. Results from ProChip-timed events will be uploaded to MYLAPS Sporthive instead of mylaps.com and other event results will also be integrated on the new platform.



Visit Sporthive
  • Basic system component
  • Full experience
  • Flexible component

How to manage the ProChip Timer

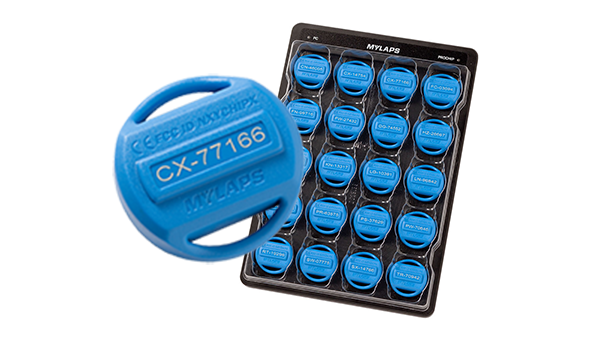

The bulk-activation functionality of the ProChip Timer in combination with the ProChip Communicator makes the process of checking and activating ProChips smooth and effortless. Just place your ProChips on the Communicator tray and you can check the realtime status of all of your ProChips.

If you need to update a subscription you can purchase the subscription in our Partner Shop and update the subscriptions from your wallet in MYLAPS Connect.

To use the chip in races you need an active 1, 2 or 5 year subscription that you can activate with the ProChip Communicator in MYLAPS Connect.

To get a good insight in how ProChip Timer works, watch the video below:

ProChip Timer (Go)

Contact us

Don’t hesitate to contact us if you want a personal consultation about the best timing system for your situation.



Get in touch
