X2 Race Control – Live Data

The Live Data module in X2 Race Control allows live 2-way communication between vehicles, race control, teams, broadcasters, and scrutineers.

X2 Race Control 59

Send and Receive Live Data

Being able to send and receive live data opens up whole range of possibilities to improve performance.

  • Get insights in race and vehicle performance
  • Pit crew can monitor individual and overall performance during the race
  • Open CANbus for 2-way communication (Tire Pressure / Rev / Balance of Performance / Cockpit temperature / Battery Management)
  • Zoom in on specific racers to see live speed and vehicle performance to help scrutineering and ensure fair play (speed limits: code 60, virtual safety car, pit speed)
  • Broadcast live data to spectators, online followers & pit crews



New call-to-action

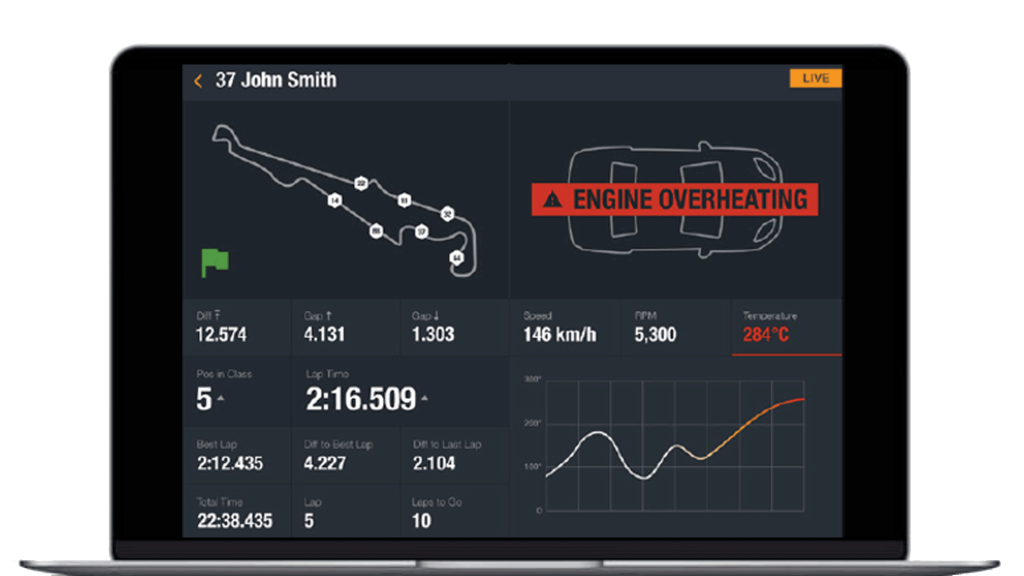

Live 2-way communication between vehicles, race control, teams, broadcasters, and scrutineers. Data is streamed via RF over the CAN Bus, so can be fully customized to your needs. Think of relevant pit crew data, like tire pressure, RPM, balance of performance, rev, cockpit temperature, battery status. Send vital live results (lap times, positions, gaps to front and back) to the drivers’ display. Live data can also be used by broadcasters to enhance the race experience for fans, showing series specific information such as boost status. Series and Championships can not only reduce mechanical failure incidents, but also gain potential value opportunities through presentation of the data by Partners.



New call-to-action



Setup

The Live Data module in X2 Race Control allows live 2-way communication between vehicles, race control, teams, broadcasters, and scrutineers.

Live Data Solution Components

The beating heart of X2 Race Control. All components are connected to and controlled from this core device. Available in Club and Pro housing.

Software to improve your Race Control. This software comes in 3 versions:

  1.  X2 Race Control Setup to manage your X2 Link setup (free)
  2.  X2 Race Control Manager to manage your Race Control (yearly fee)
  3.  X2 Race Control Manager Pro to manage your Race Control in an X2 Pro environment (yearly fee)

The BaseLink sends out radio frequency signals, which are picked up by the X2 RaceLink antennas mounted on each vehicle. The BaseLink is installed at the start/finish line, on a position with a maximum line of sight, for instance on top of a finish arch. This will ensure an optimized wireless connection with the RaceLink installed on the vehicles.The BaseLink connects to the LoopBox, which also powers the BaseLink. The Ethernet port connection to the LoopBox ensures a high-quality signal.

Multi BaseLink setups

With a Multi BaseLink setup, you can cover the complete track, no matter what size, height difference, and terrain. Several X2 BaseLinks can be linked together and controlled by race control. Depending on the layout, environment, and location the number of X2 BaseLinks required may vary.

  • Full GPS tracking coverage
  • Live results updates at the complete track

X2 Multi BaseLink setup | MYLAPS

X2 Multi BaseLink and SDK 4.0

With the new X2 Server Firmware 4.0 and SDK 4.0 it is  also possible to create a GPS tracking feed in your own, custom-built software.

MYLAPS X2 BaseLink

Shows flag signals along the track. All common flags (green, red, yellow, safety car, oil slick, etc.) are available. Pending FIA & FIM homologation approval for Grade 2 circuits.

High-end controller for marshalls to manage flag signals on X2 LED Panels. Fully compliant with FIA regulations. The controller has a clear view on current, previous and upcoming flag status. Durable design with easy to control buttons.

  • Basic system component
  • Full experience
  • Optional component

In-Vehicle Solution Components

Enables racers, teams, broadcasters, and scrutineers to stream live 2-way data via RF over CAN Bus, like results, tire pressure, RPM, balance of performance, rev, cockpit temperature, battery status. Also allows live tracking of all vehicles.

The X2 LED Bar shows safety flags as communicated through RF by RaceControl. It is an add on to marshals flagging. The X2 LED Bar functions in combination with the X2 RaceLink Club or X2 RaceLink Pro.

  • Basic system component
  • Full experience
  • Flexible component

New call-to-action

Features

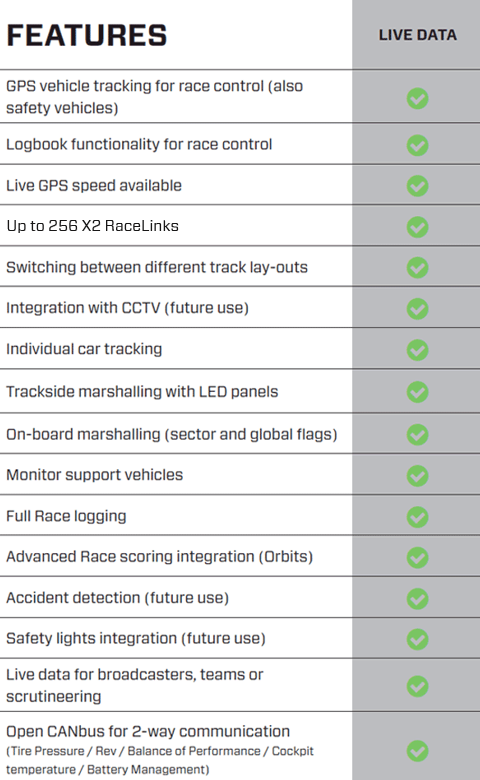

A full overview of all the features in the X2 Race Control Live Data module.



X2 Race Control 27

Brochure

X2 Race Control 19

Download the free X2 Race Control brochure

Learn everything about MYLAPS X2 Race Control in this online brochure. Download your free copy today and find information about:



✔  The Race Control solution that suits you best
✔  How you can improve safety at your track
✔  Product specifications

Enhance the racing experience

Maintain complete control of your circuit with the marshalling module. Some of the features include:

  • Live data for broadcasters, teams or scrutineering
  • Open CAN-bus for 2-way data communication
  • Send vital live results (lap times, positions, gaps to front and back) to the drivers’ display
  • Ability to get LIVE vehicle data in to Race Control with up to 128 messages per second (ie. Tire pressure, Oil temp, RPM)

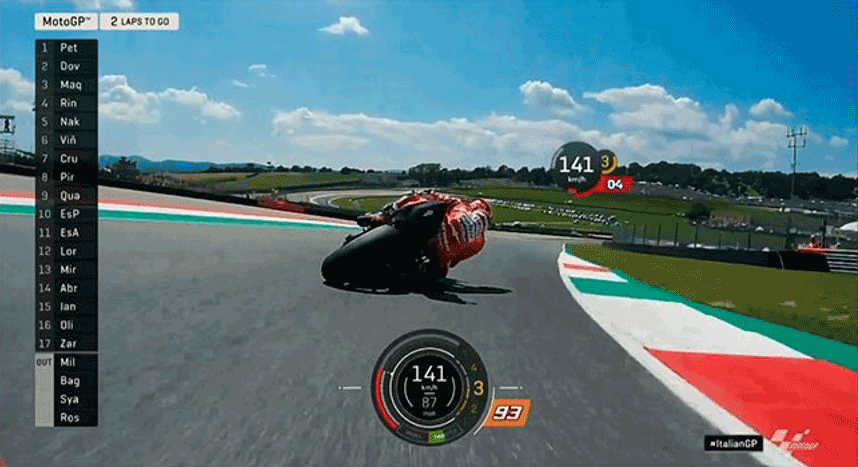

  • Enhance the race experience for fans, showing series specific information such as boost status
X2 Race Control - Live Data 2
X2 Race Control 54

Do more with X2 Race Control

  • Enhanced safety protocols for both participants and circuit personnel
  • Reduce costs, e.g. from improved allocation of circuit personnel during day-to-day operations
  • Lower liability risks with accurate, time-stamped recording of incidents, reduced ‘human factor’ errors
  • Compliance with regulatory requirements, e.g. to ensure future FIA/FIM Grading
  • Security of a one-stop Race Control solution with a trusted partner



New call-to-action



X2 Race Control 13

Be in control of your track

Want to take your Race Control to the next level? X2 Race Control can be used as stand-alone solution or can be integrated with your MYLAPS timing system.

Get in touch with us today for more information.
