X2 Race Control – Marshalling

The Marshalling module in X2 Race Control gives you full control to provide warnings to drivers for dangerous situations by showing on-board and trackside flag signals.

X2 Race Control 33

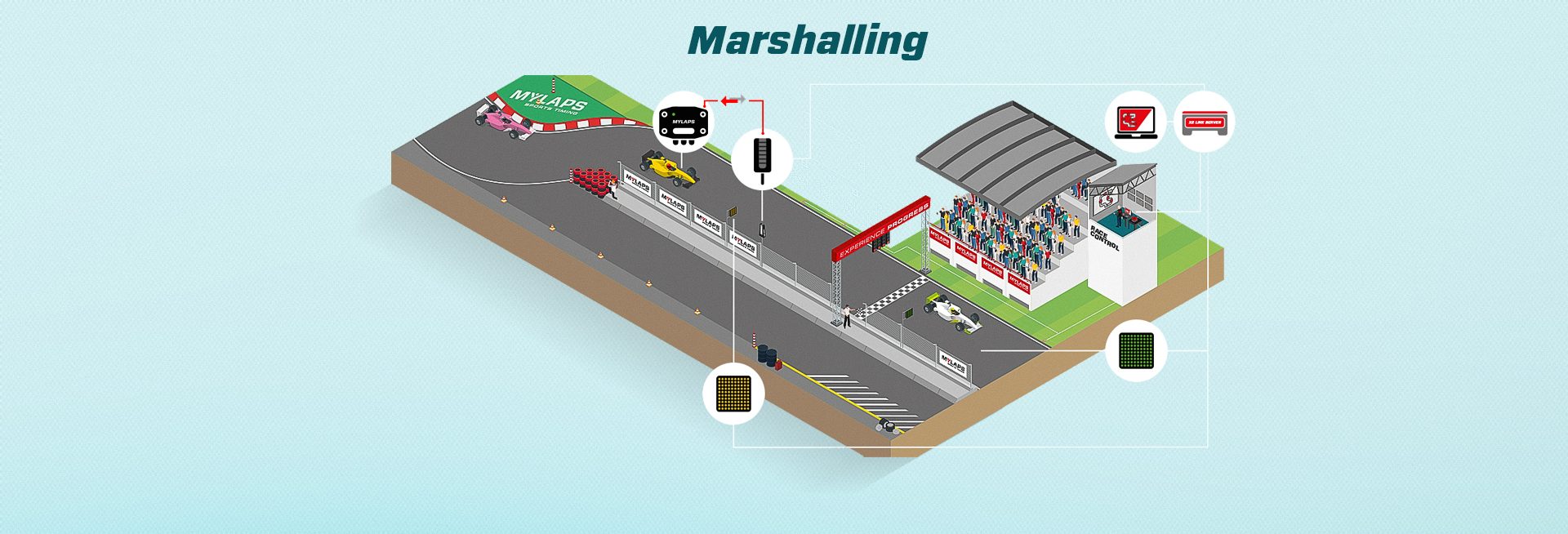

On-board and trackside marshalling

Send on-board and trackside flagging information instantly to everyone at the same time with the X2 RaceLinks and X2 LED Panel.

  • Send basic flags to all vehicles on the track (green / yellow / red / finish)
  • Flagging via integrated LED Bar
  • Shows flag signals along the track. All common flags (green, red, yellow, safety car, oil slick, etc.) are available.
    • FIA & FIM homologation is pending for the X2 LED Panel.



New call-to-action

A powerful add-on to your marshalling operations. Provide extra warning to drivers for dangerous situations by showing flag signals on their dashboards and on the new MYLAPS X2 LED Panels along the circuit. With on-board marshalling drivers receive sector-based flag signals on integrated LED lights or through external displays via the X2 RaceLink Club and X2 RaceLink Pro. All common flag signals (green, red, yellow, safety car, slippery surface, etc.) are available. These marshalling solutions offer great benefits to circuits and Series/ Championships in on-track safety, in addition to defined cost savings from marshal number reduction and redeployment.



New call-to-action



Setup

The Marshalling module in X2 Race Control gives you full control to provide warnings to drivers for dangerous situations by showing on-board and trackside flag signals.

Marshalling Solution Components

The beating heart of X2 Race Control. All components are connected to and controlled from this core device. Available in Club and Pro housing.

Software to improve your Race Control. This software comes in 3 versions:

  1.  X2 Race Control Setup to manage your X2 Link setup (free)
  2.  X2 Race Control Manager to manage your Race Control (yearly fee)
  3.  X2 Race Control Manager Pro to manage your Race Control in an X2 Pro environment (yearly fee)

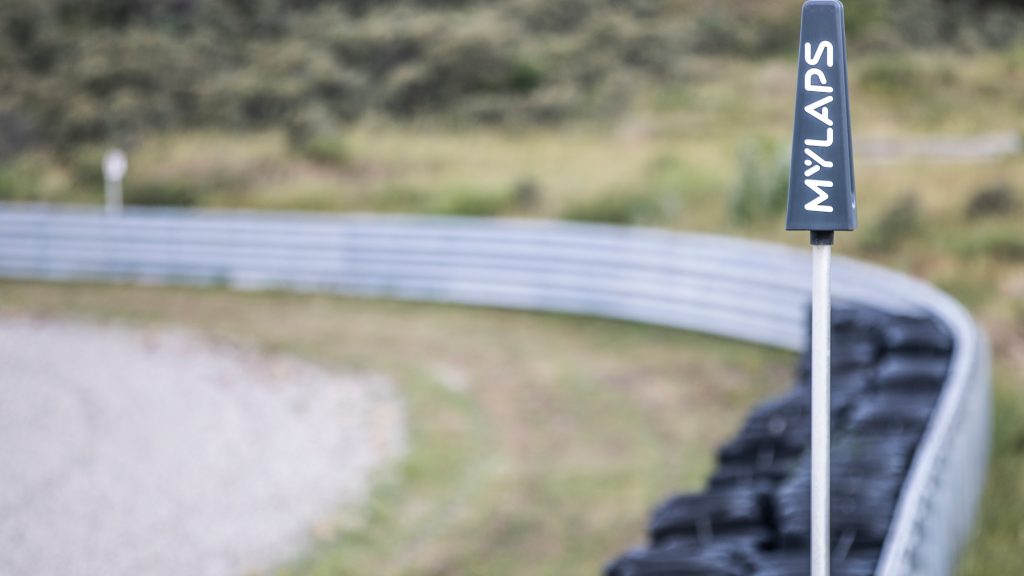

The BaseLink sends out radio frequency signals, which are picked up by the X2 RaceLink antennas mounted on each vehicle. The BaseLink is installed at the start/finish line, on a position with a maximum line of sight, for instance on top of a finish arch. This will ensure an optimized wireless connection with the RaceLink installed on the vehicles.The BaseLink connects to the LoopBox, which also powers the BaseLink. The Ethernet port connection to the LoopBox ensures a high-quality signal.

Multi BaseLink setups

With a Multi BaseLink setup, you can cover the complete track, no matter what size, height difference, and terrain. Several X2 BaseLinks can be linked together and controlled by race control. Depending on the layout, environment, and location the number of X2 BaseLinks required may vary.

  • Full GPS tracking coverage
  • Live results updates at the complete track

X2 Multi BaseLink setup | MYLAPS

X2 Multi BaseLink and SDK 4.0

With the new X2 Server Firmware 4.0 and SDK 4.0 it is  also possible to create a GPS tracking feed in your own, custom-built software.

MYLAPS X2 BaseLink

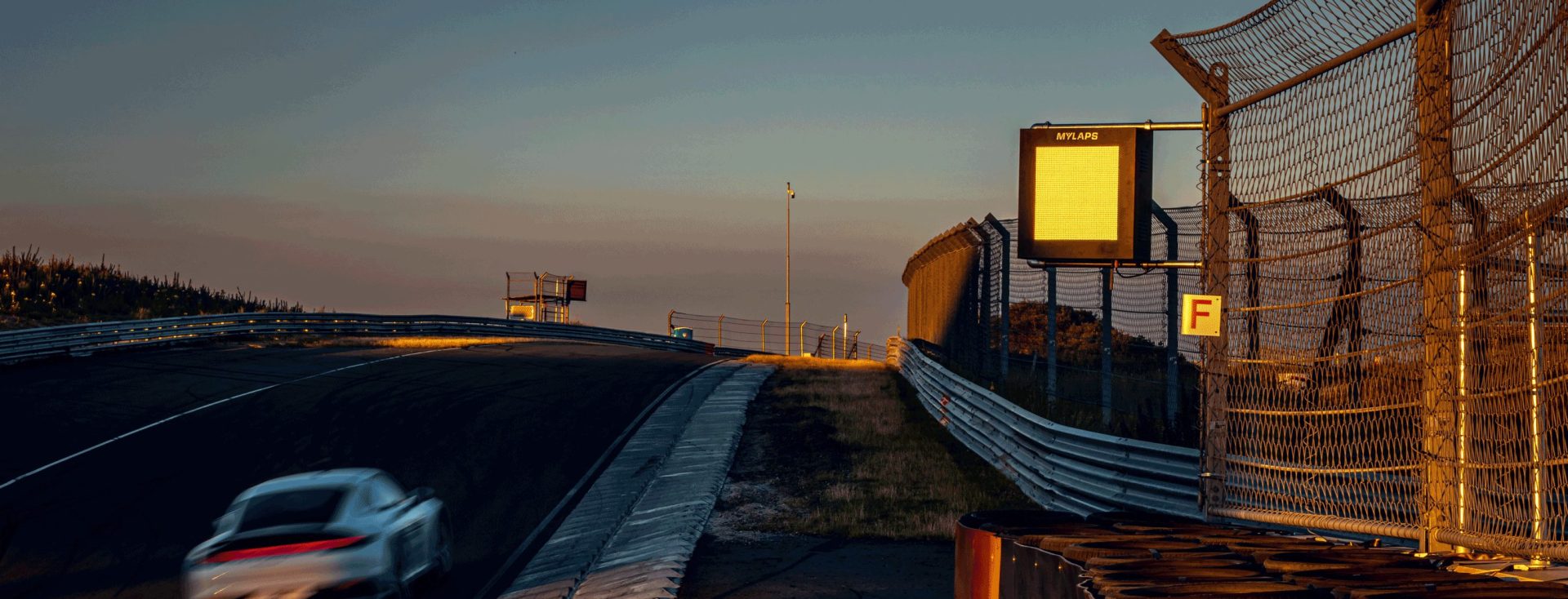

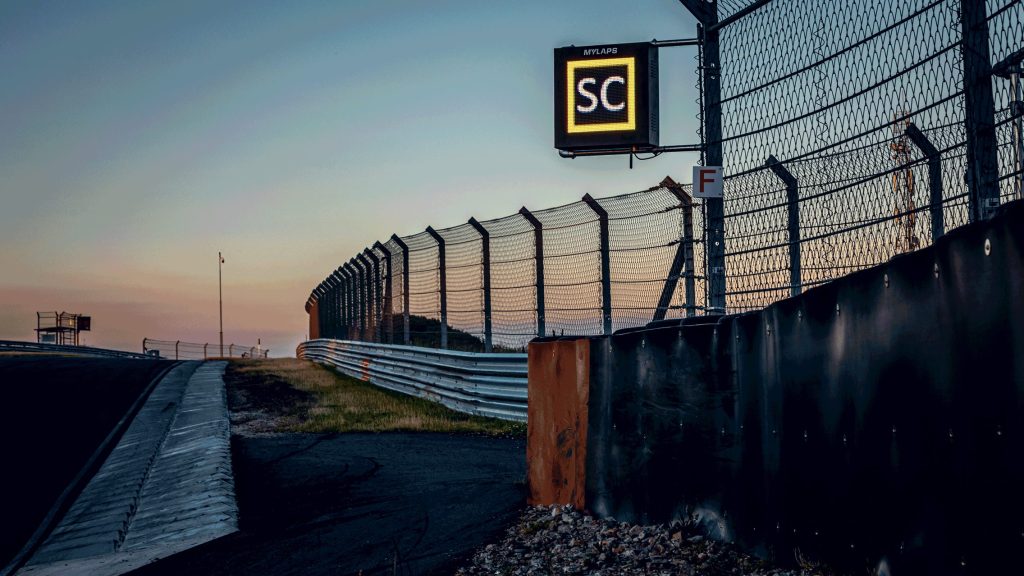

Shows flag signals along the track. All common flags (green, red, yellow, safety car, oil slick, etc.) are available. Pending FIA & FIM homologation approval for Grade 2 circuits.

High-end controller for marshalls to manage flag signals on X2 LED Panels. Fully compliant with FIA regulations. The controller has a clear view on current, previous and upcoming flag status. Durable design with easy to control buttons.

  • Basic system component
  • Full experience
  • Optional component

In-Vehicle Solution Components

The Racelink Club is used for live tracking of all vehicles, speed measurement, and it has integrated LED panel for on-board flag signals for drivers

Enables racers, teams, broadcasters, and scrutineers to stream live 2-way data via RF over CAN Bus, like results, tire pressure, RPM, balance of performance, rev, cockpit temperature, battery status. Also allows live tracking of all vehicles.

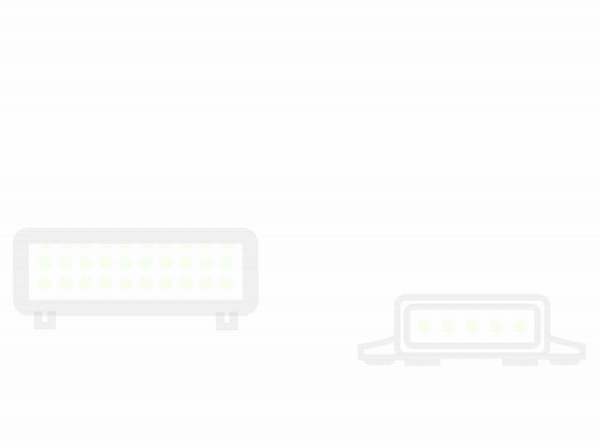

The X2 LED Bar shows safety flags as communicated through RF by RaceControl. It is an add on to marshals flagging. The X2 LED Bar functions in combination with the X2 RaceLink Club or X2 RaceLink Pro.

  • Basic system component
  • Full experience
  • Flexible component

New call-to-action

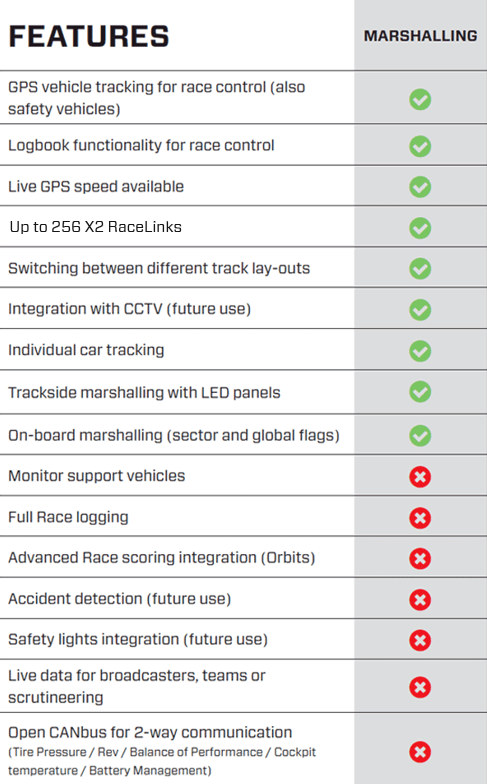

Features

A full overview of all the features in the X2 Race Control Marshalling module.



X2 Race Control - Marshalling 4

Brochure

X2 Race Control 19

Download the free X2 Race Control brochure

Learn everything about MYLAPS X2 Race Control in this online brochure. Download your free copy today and find information about:



✔  The Race Control solution that suits you best
✔  How you can improve safety at your track
✔  Product specifications

Get flagging

Maintain complete control of your circuit with the marshalling module. Some of the features include:

  • On-board marshalling
  • Trackside marshalling with MYLAPS LED panels
  • Marshalling operations
  • Live GPS positioning
  • Individual vehicle tracking
  • Manage race session
  • Event logging & Basic reporting
  • Automatic logging of all system communication
X2 Race Control 50

Do more with X2 Race Control

  • Enhanced safety protocols for both participants and circuit personnel
  • Reduce costs, e.g. from improved allocation of circuit personnel during day-to-day operations
  • Lower liability risks with accurate, time-stamped recording of incidents, reduced ‘human factor’ errors
  • Compliance with regulatory requirements, e.g. to ensure future FIA/FIM Grading
  • Security of a one-stop Race Control solution with a trusted partner



New call-to-action



X2 Race Control 13

Be in control of your track

Want to take your Race Control to the next level? X2 Race Control can be used as stand-alone solution or can be integrated with your MYLAPS timing system.

Get in touch with us today for more information.
