Karting

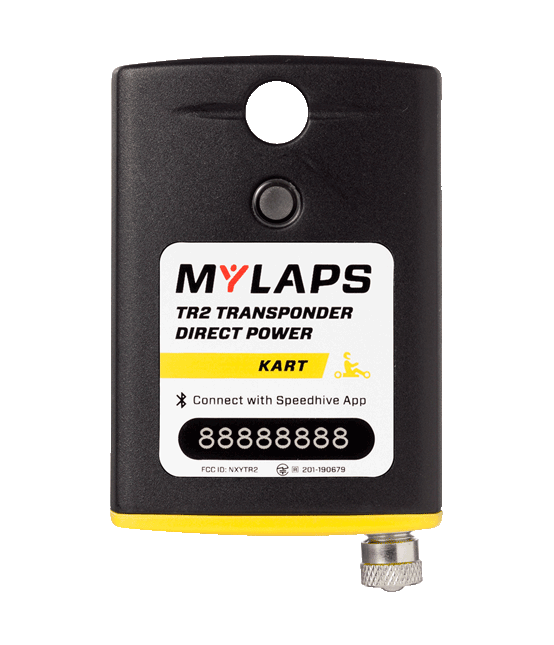

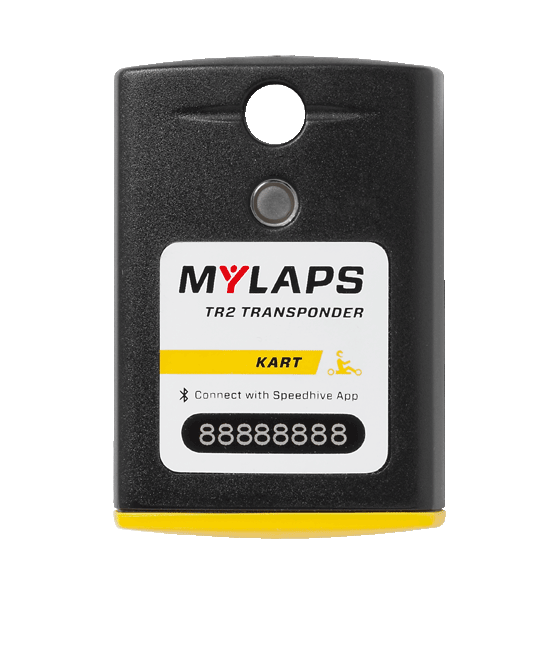

All karts have a MYLAPS transponder, that sends a unique signal to the detection loop in the track. MYLAPS transponders have been used in the world of karting for many years.

The decoder determines the exact time at which each transponder passes the detection loops. The decoder sends this data to the server.

The beating heart of a karting timing system. All X2 components are connected to the X2 Server. This is the connection to the X2 Cloud and controls the entire system. The server has a built-in practice mode that allows automatic uploads of practice results to the Speedhive app and website.

Orbits 5 is exclusively developed for X2 and optimized for timekeeping at all levels, from basic to semi-professional timekeeping.

Detection loops are embedded in the track’s surface at the start and finish line and at intermediate timing points along the track. A detection loop works as the system’s antenna. It picks up signals from the transponders and passes them through to the decoder.

Optimize your race experience with real-time results! Get the most out of your event by broadcasting live circuit racing results to your fans and followers. With the new Speedhive Live Timing Web you’re fully equipped for your upcoming races.

The BaseLink sends out radio frequency signals, which are picked up by the X2 RaceLink antennas mounted on each vehicle. The BaseLink is installed at the start/finish line, on a position with a maximum line of sight, for instance on top of a finish arch. This will ensure an optimized wireless connection with the RaceLink installed on the vehicles. The BaseLink connects to the LoopBox, which also powers the BaseLink. The Ethernet port connection to the LoopBox ensures a high-quality signal.

Multi BaseLink setups

With a Multi BaseLink setup, you can cover the complete track, no matter what size, height difference, and terrain. Several X2 BaseLinks can be linked together and controlled by race control. Depending on the layout, environment, and location the number of X2 BaseLinks required may vary.

Full GPS tracking coverage
Live results updates at the complete track

X2 Multi BaseLink and SDK 4.0

With the new X2 Server Firmware 4.0 and SDK 4.0 it is  also possible to create a GPS tracking feed in your own, custom-built software.

Via the X2 RaceLink add-on, racers will be able to receive a 2-way communication into their vehicles. RaceLink works with MYLAPS X2 Direct Power Transponders. Live race timing data will be displayed on an onboard display. X2 Link offers additional features and is not required to do timekeeping only. However, we do encourage tracks and series to offer X2 Link as it adds to the racing experience.
